How Long Will a 100Ah Battery Last? 12V Appliance Runtime Guide
A 12V 100Ah deep-cycle battery is the undisputed workhorse of American emergency backup systems, off-grid cabins, RVs, and marine power banks. Yet answering how long it will run your specific appliances is rarely a single number. Real-world runtime hinges on battery chemistry, inverter efficiency, discharge rates, and compressor cycling.
Direct Answer: How Long Will a 12V 100Ah Battery Last?
A standard 12V 100Ah deep-cycle battery stores 1,200 nominal Watt-hours (Wh) of energy. Under common benchmark operating assumptions:
Provides approximately 1,080 Watt-hours of usable energy. At a 90% inverter efficiency, it delivers ~972 Wh of AC electricity to appliances.
Provides approximately 600 Watt-hours of recommended usable energy to safeguard plate life. At 90% inverter efficiency, it delivers ~540 Wh of AC electricity.
For common household devices, here is what you can realistically expect from a single 12V 100Ah battery:
- Wi-Fi Router & Modem (15W direct DC): 38 to 40 hours on lead-acid; 68 to 72 hours on LiFePO4.
- Laptop Computer (60W AC via inverter): 9 hours on lead-acid; 16 hours on LiFePO4 (roughly 8 to 15 full laptop recharges).
- 43-Inch LED Smart TV (55W AC via inverter): 9.8 hours on lead-acid; 17.6 hours on LiFePO4.
- CPAP Machine without heated humidity (15W DC): 38 to 40 hours on lead-acid; 68 to 72 hours on LiFePO4 (5 to 9 full nights of sleep).
- Residential Refrigerator (40W to 55W average combined draw): 11 to 14 hours on lead-acid; 19 to 24 hours on LiFePO4.
- Space Heater or Toaster (1,200W AC): Not recommended. A 100Ah battery will be depleted or tripped on low-voltage shutdown in 15 to 45 minutes.
What Does a 12V 100Ah Battery Actually Store?
To understand battery duration, you must first distinguish between electrical charge capacity and stored energy capacity.
Amp-hours (Ah) measure electrical charge volume over time. A 100Ah rating means the battery can deliver 5 Amps for 20 hours, 10 Amps for 10 hours, or 20 Amps for 5 hours at its rated test conditions. However, Amp-hours alone do not tell you how much physical work the battery can perform because charge volume requires electrical pressure (voltage) to produce power.
Watt-hours (Wh) measure true energy capacity. To convert electrical charge to energy, multiply circuit voltage by Amp-hours:
Nominal Energy = 12 Volts × 100 Amp-hours = 1,200 Watt-hours (1.2 kWh)
If you connect two 12V 100Ah batteries in series, the voltage doubles to 24V while capacity remains 100Ah, storing 2,400 Wh (24V × 100Ah). If you connect them in parallel, voltage remains 12V while capacity doubles to 200Ah, also storing 2,400 Wh (12V × 200Ah). In both arrangements, total stored energy is identical.
For a deep dive into electrical charge fundamentals, read our guide on What Does Ah Mean on a Battery? or explore our companion tutorial on What Is a Watt-Hour (Wh)? Watts vs. Watt-Hours Explained.
LiFePO4 vs. Lead-Acid: Usable Energy, Voltage Sag, and Weight
While every 12V 100Ah battery carries the same nominal 1,200 Wh label, how much of that energy you can actually extract before damage occurs depends completely on internal cell chemistry.
| Engineering Characteristic | Deep-Cycle Lead-Acid (AGM / Gel) | LiFePO4 Lithium Iron Phosphate |
|---|---|---|
| Recommended Depth of Discharge (DoD) | Illustrative benchmark: 50% max recommended | Illustrative benchmark: 80% to 90% usable |
| Delivered Usable Energy | ~500 to 600 Wh (40 to 50 Ah) | ~960 to 1,080 Wh (80 to 90 Ah) |
| Discharge Voltage Curve | Sloping curve: Drops from 12.8V down to 11.8V under load | Flat curve: Stays above 12.8V through 85% of discharge |
| Peukert's Law Losses (Heavy Loads) | Severe: High current draws slash delivered capacity | Minimal: Maintains rated capacity even at 0.5C to 1C rates |
| Typical Physical Weight | ~60 to 70 lbs (27 to 32 kg) | ~24 to 28 lbs (11 to 13 kg) |
| Typical Expected Cycle Life | 300 to 500 cycles (at 50% DoD) | 3,000 to 5,000+ cycles (at 80% to 90% DoD) |
Understanding Depth of Discharge (DoD)
In technical sizing, Depth of Discharge (DoD) refers to the percentage of total capacity withdrawn from a battery during a cycle.
For traditional lead-acid chemistries (flooded, sealed AGM, and Gel), draining past 50% DoD causes rapid plate sulfation, grid corrosion, and premature cell failure. When a manufacturer recommends a 50% DoD ceiling, your 100Ah battery is effectively a 50Ah usable storage reservoir under daily cycling.
In contrast, Lithium Iron Phosphate (LiFePO4) chemistry allows deeper regular discharge. Most manufacturers approve discharging to 80% or 90% without rapid cell degradation. Discharging 90% of a 100Ah LiFePO4 battery releases 90Ah (1,080 Wh) of energy, giving you nearly double the operational service hours of an identically rated lead-acid unit.
Note: Recommended DoD varies by battery model, operating temperature, and manufacturer specifications. The figures of 50% for lead-acid and 90% for LiFePO4 are illustrative engineering benchmarks used throughout this guide to demonstrate practical runtime differences.
Voltage Sag and Low-Voltage Inverter Cutoffs
As a lead-acid battery discharges, its terminal voltage steadily drops. When powering heavy loads (such as a 600W microwave or blender), internal cell resistance causes immediate voltage sag. Even if the battery still has 40% of its charge remaining, terminal voltage may sag below 10.5 Volts, causing your inverter to beep and trip its low-voltage disconnect protection.
LiFePO4 batteries feature an extraordinarily flat discharge curve. A lithium cell remains between 13.0V and 12.8V for almost its entire discharge cycle, ensuring your connected inverter and electronics receive steady voltage until the cell is virtually empty.
Practical Runtime Formula & 100W Worked Example
To estimate how long any electrical appliance will run from a battery, use the following deterministic energy equation:
Step-by-Step Worked Example: 100W AC Load
Suppose a homeowner wants to run a 100-Watt emergency lighting and fan circuit through an inverter from a 12V 100Ah battery. We will assume an inverter conversion efficiency of 90% (0.90).
- Calculate nominal battery energy: 12V × 100Ah = 1,200 Wh
- Apply usable depth of discharge (90%): 1,200 Wh × 0.90 = 1,080 Wh usable
- Apply inverter efficiency (90%): 1,080 Wh × 0.90 = 972 delivered AC Wh
- Divide by appliance draw (100W): 972 Wh ÷ 100W = 9.72 hours (~9.7 hours)
- Calculate nominal battery energy: 12V × 100Ah = 1,200 Wh
- Apply recommended depth of discharge (50%): 1,200 Wh × 0.50 = 600 Wh usable
- Apply inverter efficiency (90%): 600 Wh × 0.90 = 540 delivered AC Wh
- Divide by appliance draw (100W): 540 Wh ÷ 100W = 5.40 hours (5.4 hours)
These calculations illustrate why a single 12V 100Ah LiFePO4 battery delivers nearly 80% more operational time than a lead-acid battery under identical load conditions.
The Inverter Factor: DC vs. AC Conversion Losses
Many battery owners are surprised when their battery empties significantly faster than manual calculations predict. The most frequent culprit is the power inverter itself.
1. DC-to-AC Inversion Losses (8% to 15%)
Batteries supply Direct Current (DC), but standard household appliances require 120-Volt Alternating Current (AC). Converting 12V DC into 120V AC involves rapid solid-state switching and magnetic induction through a transformer. Quality pure sine wave inverters operate at 88% to 92% peak efficiency, but cheaper modified sine wave units or inverters operating at very light loads often drop to 80% to 85% efficiency. The remaining 10% to 15% is lost as thermal heat through the cooling fan.
2. Inverter Tare / Standby Power Consumption
An inverter consumes electrical energy simply by being turned on, even if nothing is plugged into it. This standby draw, known as tare power or no-load idle consumption, typically ranges from:
- Compact 300W–500W Inverters: 4 to 8 Watts of idle draw.
- Standard 1,000W–1,500W Inverters: 10 to 18 Watts of idle draw.
- Heavy-Duty 2,000W–3,000W Inverters: 20 to 35 Watts of idle draw.
If you leave a 2,000W inverter running overnight just to charge a 10W smartphone, the inverter itself will waste 20W to 25W continuously, burning over 200 Watt-hours of your battery solely to deliver 30 Watt-hours of phone charge.
Whenever possible, run equipment directly from 12V DC. Using a 12V DC car adapter for a laptop, 12V USB-C PD fast chargers for phones, 12V LED lighting, and a 12V cord for your CPAP bypasses the inverter entirely. Direct DC operation eliminates conversion losses and standby tare, extending your battery runtime by 15% to 30%.
Can a 100Ah Battery Run a Refrigerator? Compressor Duty Cycles Explained
One of the most frequent search questions from homeowners preparing for storm outages is whether a single 12V 100Ah battery can keep their food cold. The answer is yes, but the calculation requires understanding compressor duty cycles rather than simple nameplate numbers.
Why Refrigerator Nameplate Watts Are Deceptive
If you inspect the electrical data label on a residential kitchen refrigerator, you might see a rating such as 115V, 6.0 Amps (or approximately 700 Watts). Homeowners often assume:
This calculation is completely wrong. That nameplate number reflects the maximum defrost heater current or locked-rotor startup draw. In reality, a modern refrigerator compressor only runs when cooling is demanded, cycling on and off throughout the day.
Compressor Duty Cycles & Real-World Energy Use
A standard residential Energy Star refrigerator consumes roughly 350 to 500 kilowatt-hours (kWh) per year according to U.S. Department of Energy (DOE) testing benchmarks.
- Annual Energy Consumption: 400 kWh/year ÷ 365 days = approximately 1,100 Wh (1.1 kWh) per day.
- Average Hourly Power Draw: 1,100 Wh ÷ 24 hours = approximately 45 Watts average.
- Compressor Duty Cycle: When active, the compressor draws 120W to 150W for 15 to 20 minutes, then remains off for 20 to 30 minutes, resulting in an average duty cycle of 30% to 45%.
Usable capacity: 1,080 Wh. With an average combined draw of 45W to 55W (including compressor cycling and inverter tare draw), delivered runtime is roughly 19 to 24 hours.
Usable capacity: 600 Wh. With a 45W to 55W average draw, delivered runtime is roughly 11 to 13 hours before the battery reaches its safe cutoff limit.
Startup Surge: Refrigerator compressors require an instantaneous startup surge of 800W to 1,200W for 1 to 2 seconds. You must use a pure sine wave inverter rated for at least 1,000W continuous and 2,000W surge; smaller inverters will overload and trip immediately.
Ambient Temperature & Door Seals: If room temperature climbs above 85°F (29°C) or the door is opened frequently, compressor duty cycle can jump to 60% or higher, shortening battery runtime by 30% to 50%.
For larger multi-day power outages where you plan to run multiple household appliances or well pumps alongside refrigeration, consult our dedicated guide on What Size Generator Do I Need to Run a Refrigerator?.

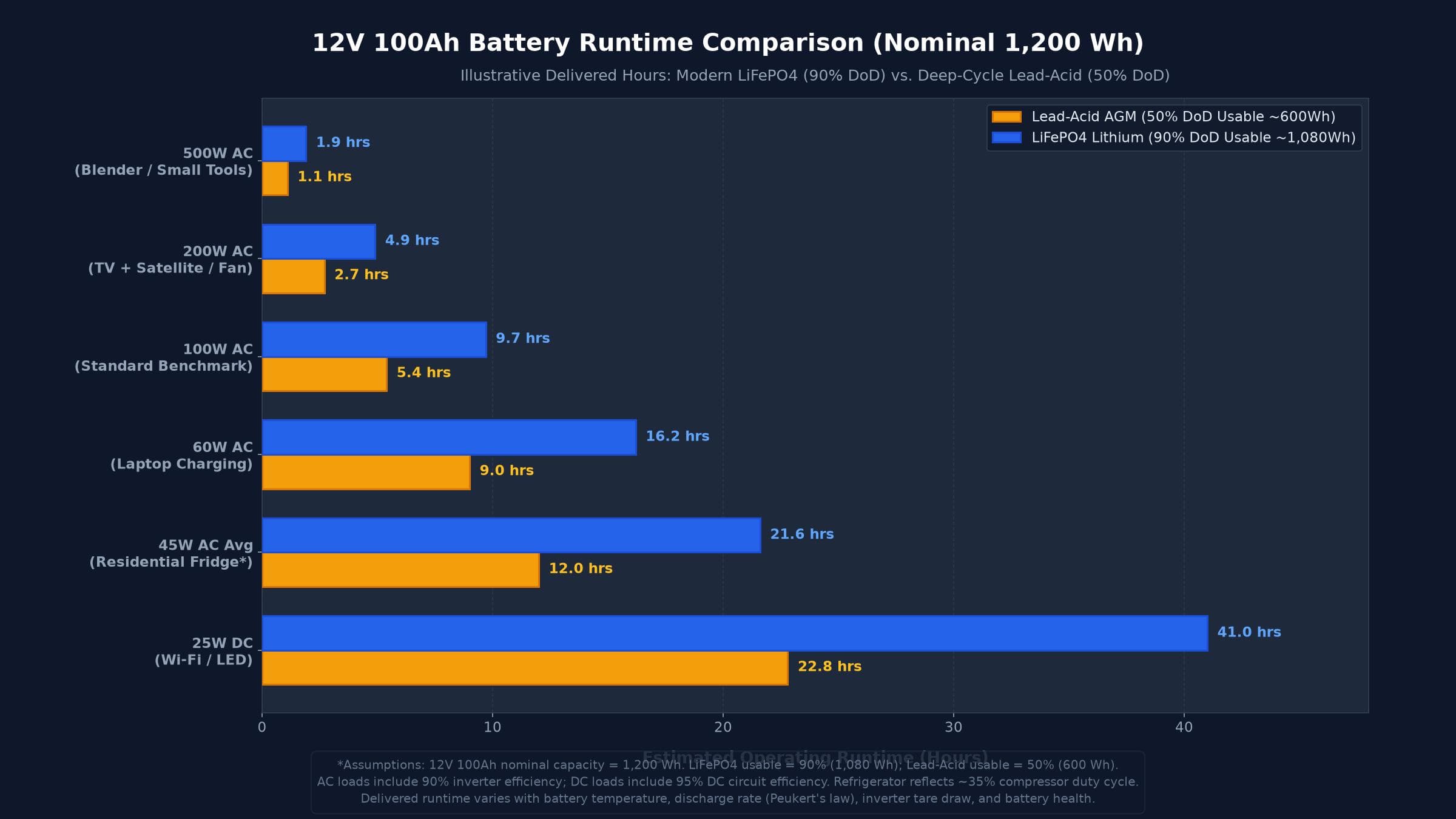

Master 12V 100Ah Appliance Runtime Reference Table
The table below provides realistic, calculation-grounded runtime estimates for common appliances powered by a single 12V 100Ah battery.
| Appliance / Load | Typical Draw | Circuit Type | Operating Mode | Lead-Acid Runtime (50% DoD) | LiFePO4 Runtime (90% DoD) |
|---|---|---|---|---|---|
| Wi-Fi Router & Optical Modem | 15 Watts | 12V DC | Continuous 100% | ~38.0 Hours | ~68.4 Hours |
| 12V LED Interior / Camp Lights | 20 Watts | 12V DC | Continuous 100% | ~28.5 Hours | ~51.3 Hours |
| 12V Portable RV/Overland Fridge | 15W Avg (45W run) | 12V DC | ~30% duty cycle | ~38.0 Hours | ~68.4 Hours |
| CPAP Machine (No Humidity / Heat) | 15 Watts | 12V DC | Continuous 100% | ~38.0 Hours | ~68.4 Hours |
| Laptop Computer Charging | 60 Watts | 120V AC (Inverter) | Active charging | ~9.0 Hours | ~16.2 Hours |
| 43-Inch LED Smart TV | 55 Watts | 120V AC (Inverter) | Continuous watching | ~9.8 Hours | ~17.6 Hours |
| Full-Size Residential Fridge | 45W Avg (150W run) | 120V AC (Inverter) | ~35% duty cycle + tare | ~12.0 Hours | ~21.6 Hours |
| CPAP Machine (Heated Hose & Humidifier) | 60 Watts | 120V AC (Inverter) | Humidifier active | ~9.0 Hours | ~16.2 Hours |
| Standard 20-Inch Box Fan | 50 Watts | 120V AC (Inverter) | Medium speed | ~10.8 Hours | ~19.4 Hours |
| Standard Continuous 100W Benchmark | 100 Watts | 120V AC (Inverter) | Continuous 100% | ~5.4 Hours | ~9.7 Hours |
| Continuous 200W Load | 200 Watts | 120V AC (Inverter) | Continuous 100% | ~2.7 Hours | ~4.9 Hours |
| Continuous 500W Load | 500 Watts | 120V AC (Inverter) | Continuous 100% | ~1.1 Hours* | ~1.9 Hours |
| Residential Sump Pump (1/3 HP) | 800W (2.4 kW surge) | 120V AC (Inverter) | Intermittent (~10% cycle) | ~6.8 Hours (40 mins pump) | ~12.2 Hours (73 mins pump) |
| Microwave Oven (Compact) | 1,100W Input | 120V AC (Inverter) | Active heating | ~20 to 25 Minutes* | ~50 Minutes |
*Note on high-current loads: Discharging a lead-acid battery at 500W to 1,100W (45A to 100A DC) causes severe Peukert losses and voltage sag, which will drop actual delivered runtime below theoretical math. LiFePO4 cells maintain over 95% of their rated capacity under high discharge rates.
Detailed Real-World Appliance Scenarios
To see how multiple devices combine in actual emergency or off-grid situations, explore these practical field scenarios:
Scenario 1: Home Storm Outage Communications Hub
During a regional thunderstorm outage, a family needs to maintain internet access, charge smartphones, and keep an LED floor lamp illuminated.
A single 12V 100Ah LiFePO4 battery (1,080 Wh usable) will easily power this communication hub for 2.3 full days (roughly 55 hours) without needing solar or generator recharge. A 100Ah AGM battery (600 Wh usable) delivers approximately 1.3 days (31 hours).
Scenario 2: Medical CPAP Machine Nightly Operation
A patient requiring CPAP therapy needs to sleep safely off-grid or during extended utility blackouts.
Draws roughly 12W to 18W (average ~15W). Over an 8-hour sleep cycle, it consumes ~120 Wh. A 100Ah LiFePO4 battery delivers 8 to 9 full nights of sleep.
Heating water and air pulls 60W to 80W continuous. Over 8 hours, it consumes 550 to 700 Wh. A 100Ah LiFePO4 battery lasts only 1 to 1.5 nights; a lead-acid battery is completely depleted before morning.
Scenario 3: RV Camper Boondocking (Off-Grid 12V System)
An overland van camper runs a 45-quart 12V compressor fridge, water pump, cabin lights, and roof exhaust vent fan without shore power.
On a 100Ah LiFePO4 battery (1,080 Wh usable), the camper can boondock for almost two full days (46 hours) with zero solar generation. On lead-acid (600 Wh usable), the battery must be recharged every 24 hours.
Factors That Alter Real-World Delivered Runtime
Mathematical formulas establish the theoretical upper bound of battery performance. In field applications, several environmental and electrical factors reduce deliverable energy:
1. Discharge Rate & Peukert's Law
Formulated by German scientist Wilhelm Peukert in 1897, Peukert's Law demonstrates that the available chemical capacity of a lead-acid battery diminishes significantly as discharge rate increases. Lead-acid batteries are rated at a slow 20-hour rate (C/20, or 5 Amps for a 100Ah pack). If you pull 50 Amps (powering a 500W inverter load), internal electrolyte resistance and chemical diffusion bottlenecks cause heating, cutting deliverable capacity by 20% to 35%. LiFePO4 lithium batteries exhibit an almost negligible Peukert exponent, maintaining over 95% of rated capacity even under heavy 0.5C to 1C discharge currents.
2. Ambient Operating Temperature
Battery capacity ratings are standardized at 77°F (25°C). In cold weather, chemical reaction rates slow down:
- Lead-Acid in Freezing Temps: At 32°F (0°C), deliverable capacity drops by approximately 20%. At 0°F (-18°C), capacity can drop by 40% to 50%.
- LiFePO4 in Freezing Temps: Lithium batteries can discharge down to -4°F (-20°C) with modest capacity loss (roughly 10% to 20%), but cannot be safely charged below 32°F (0°C) without permanent lithium plating and fire risk. Quality LiFePO4 batteries feature low-temperature BMS charge cutoffs or internal heating pads.
3. DC Wire Gauge Resistance & Voltage Drop
Because a 12V battery operates at low voltage, high wattage requires immense electrical current. A 1,200W inverter pulls over 100 Amps of DC current from a 12V battery (Amps = Watts ÷ Volts). Using undersized battery cables (such as 6 AWG or 8 AWG) creates significant electrical resistance, dissipating power as heat and causing 0.5V to 1.0V of drop between the battery terminals and the inverter. This premature voltage drop triggers inverter low-voltage alarms long before the battery is actually discharged. Always use heavy 2 AWG, 1/0, or 2/0 pure copper cables with crimped lugs for 1,000W+ inverters.
4. Battery Age and Internal Degradation
As batteries age through charge-discharge cycles and calendar storage, internal cell impedance rises and active chemical material degrades. A lead-acid battery after 2 to 3 years of heavy use might retain only 70% to 80% of its original factory Ah rating, proportionately shortening every runtime estimate.
Runtime per Charge vs. Battery Lifespan
When battery buyers ask "How long will a 100Ah battery last?", they often confuse two completely different engineering metrics:
How many hours or minutes the battery can supply power to your electrical devices before its voltage drops to its safe cutoff threshold and requires a recharge.
How many total charge-and-discharge cycles (or calendar years) the battery cell chemistry can survive before its maximum storage capacity permanently drops below 80% of its original nameplate rating.
Understanding Cycle Life by Chemistry
A cycle represents discharging a battery to a specified depth and recharging it back to 100%. The depth to which you discharge directly impacts how many lifetime cycles you receive:
- Standard Deep-Cycle Flooded Lead-Acid: Delivers roughly 300 to 500 cycles at 50% DoD. If consistently discharged to 80% or 100%, cycle life collapses to under 150 to 200 cycles.
- Sealed AGM Lead-Acid: Delivers roughly 400 to 600 cycles at 50% DoD under proper temperature-compensated float charging.
- LiFePO4 Lithium Iron Phosphate: Delivers 3,000 to 5,000+ cycles at 80% to 90% DoD. Even after 4,000 full cycles, the battery does not die; it simply retains ~80% of its initial 100Ah capacity.
For daily off-grid or solar cycling, LiFePO4 lithium provides vastly lower total cost of ownership per kilowatt-hour delivered over its operating lifetime, despite higher initial purchase costs.
Interactive Power & Runtime Calculators
Need to calculate runtime for your exact custom equipment, size a multi-battery storage bank, or calculate wire sizes? Use our purpose-built engineering calculators:
UPS & Battery Backup Runtime Calculator
Input your specific appliance watts, battery voltage, and Amp-hour capacity to calculate precise backup hours across customizable DoD and inverter efficiency settings.
Battery Capacity & Sizing Calculator
Convert between Ah and Wh, evaluate usable battery bank energy across chemistries, or calculate the exact number of battery units required for your target runtime.
Watts to Amps Electrical Calculator
Convert appliance wattage into circuit current (Amps) at 12V DC, 24V DC, or 120V AC to properly size circuit breakers, fuses, and battery cables.
Generator Size Calculator
When battery runtime is not enough for extended multi-day outages, calculate the exact generator wattage required to recharge battery banks and power whole-house loads.
Frequently Asked Questions
Real engineering answers to common homeowner, RV, and solar battery runtime questions.
