Solar Panels in Series vs Parallel: Wiring, Voltage & Current Explained

When you connect two or more solar panels together, you are assembling an electrical photovoltaic (PV) array. The arrangement you choose fundamentally dictates how electrical power is transmitted from your array down to your solar charge controller and battery storage bank. While both configurations deliver the same total theoretical wattage under unshaded, standard test conditions, they perform completely differently with respect to wire gauge sizing, voltage drop over distance, partial shading sensitivity, and equipment safety margins.

Before designing any photovoltaic circuit, you must examine the manufacturer specification label located on the rear of your solar panel. Every module displays four fundamental electrical ratings measured under Standard Test Conditions (STC: 1,000 W/m² solar irradiance, 25°C cell temperature, and Air Mass 1.5 spectrum). Knowing the difference between open-circuit, operating, and short-circuit values is essential for safe circuit sizing and charge controller selection.

Wiring solar panels in series is analogous to stacking flashlight batteries in a tube: the electrical potentials add together sequentially, while the volume of electrical charge passing through each element remains identical.

Why Higher Voltage Reduces Power Loss Over Long Cable Runs

Electrical power loss in any copper wire conductor follows Joule's Law: P_loss = I² × R, where I is current in Amperes and R is conductor resistance in Ohms. Notice that resistive power loss increases with the square of the current.

When you double operating voltage by wiring panels in series, you transmit the exact same wattage at half the amperage. Cutting current in half reduces conductor power dissipation to one-fourth (0.5² = 0.25). This allows installers to use smaller, lighter, and more economical copper cables (such as 10 AWG or 12 AWG PV wire) over runs of 50 to 100 feet without suffering unacceptable voltage drop. You can verify total wattage across varying voltage and current combinations with our amps to watts calculator.

In a two-panel series (2S) configuration, the positive terminal of Module 1 connects directly to the negative terminal of Module 2. The remaining free negative lead from Module 1 and free positive lead from Module 2 are routed into your MPPT charge controller.

In a parallel solar circuit, all positive panel terminals are linked together, and all negative terminals are linked together. This splits incoming solar current across multiple parallel paths while keeping circuit potential fixed at single-panel voltage.

Hardware Requirements: MC4 Branch Connectors and Combiner Boxes

To wire two panels in parallel, installers commonly use MC4 2-to-1 Y-branch connectors (one pair: 2-male-to-1-female and 2-female-to-1-male). The positive leads from both panels plug into one branch connector, and the negative leads plug into the other, merging the outputs into a single pair of heavy-gauge home-run conductors.

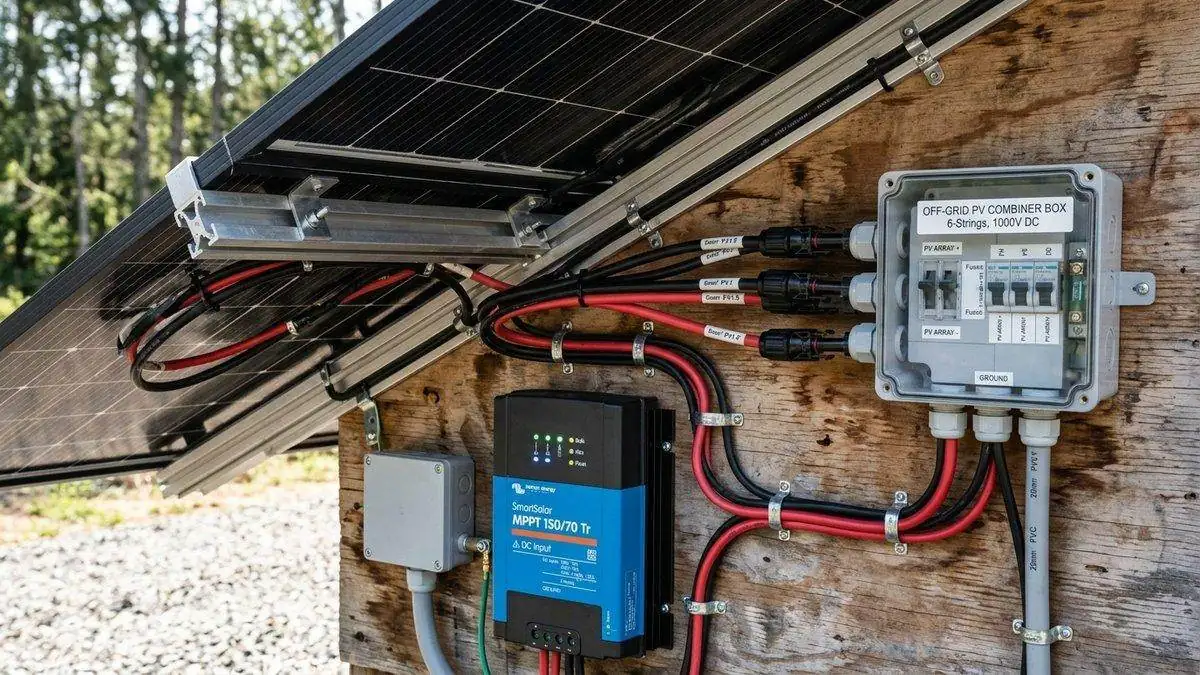

When combining three or more parallel modules, a dedicated weatherproof PV combiner box equipped with individual branch fuses and a DC disconnect switch is typically utilized. Because current multiplies with each parallel panel, installers must verify wire ampacity using our watts to amps electrical calculator to select appropriately sized conductors that avoid resistive overheating and excessive voltage drop.

In a two-panel parallel (2P) configuration, both positive leads terminate into a positive Y-branch connector, and both negative leads terminate into a negative Y-branch connector.

When solar arrays expand to 4, 6, 8, or more panels, choosing strictly series or strictly parallel often introduces critical design bottlenecks:

• Wiring all 4 panels in series (4S) produces 97.2V V_oc at STC (which can exceed 115V in sub-zero winter temperatures), pushing past the maximum 100V input limit of standard entry-level MPPT controllers.
• Wiring all 4 panels in parallel (4P) produces 40.8A I_sc, requiring heavy 6 AWG or 4 AWG copper wire and multi-branch combiner boxes with dedicated branch fuses to avoid code violations.

A series-parallel (2S2P) configuration solves both dilemmas by pairing modules into two identical series strings (String A and String B), and then wiring those two strings together in parallel. Voltage doubles to 40.8V V_mp, and current doubles to 19.60A I_mp, keeping both parameters within comfortable operating ranges for standard 100V/30A or 150V/45A MPPT controllers while using standard 10 AWG solar cable.

Your choice between series and parallel wiring is intrinsically tied to the technology inside your solar charge controller. Connecting panels without matching controller voltage thresholds can lead to severe equipment damage or massive power loss.

Cold-Temperature Voc Calculation per NEC 690.7

National Electrical Code (NEC Article 690.7) mandates that maximum PV system voltage must be calculated based on the lowest expected ambient temperature at the installation site. The mathematical formula is:

Important Compliance Note: The temperature coefficient of open-circuit voltage (α_Voc or γ_Voc, typically between -0.26%/°C and -0.35%/°C) must be taken directly from the specific module manufacturer's datasheet or certification listing. Never assume a universal coefficient. Exceeding the controller's maximum PV input voltage can damage the controller and must be avoided.

To calculate battery bank storage requirements and evaluate charging hours from your array wattage, utilize our battery capacity and sizing calculator.

One of the most persistent debates in solar installation is how series versus parallel circuits behave when partially shaded by tree limbs, rooftop vents, chimneys, or utility masts.

How Module Bypass Diodes Function

Many crystalline silicon modules incorporate internal bypass diodes installed inside the rear junction box. These diodes divide the solar cells into series groups (typically three groups in a standard 60-cell or 72-cell module, or six sub-strings in split-cell modules). When one cell is shaded, its resistance spikes, causing it to consume rather than produce power. The bypass diode becomes forward-biased and diverts string current around the shaded cell group, preventing destructive hot-spots and allowing the remaining unshaded cell groups to continue generating power.

Proper array orientation also plays a critical role in mitigating seasonal shade and optimizing production. Calculate your geographic azimuth and seasonal roof pitch angles using our solar panel tilt angle calculator.

When Is Series or Parallel String Fusing Required? (NEC 690.9)

Overcurrent protection requirements depend on system design, conductor ampacity, and the module manufacturer's maximum series fuse rating (listed on the specification label per NEC Article 690.9):

• Single Series String (1S or multi-panel series string): No string fuse is required if the conductor ampacity is rated for 1.25x the module short-circuit current (I_sc) multiplied by the 1.25x continuous-load factor (1.56 × I_sc). There is no external source of fault current that can backfeed the string.
• Two Parallel Strings (2P): String fuses are generally not required if the conductor ampacity is sized correctly, because if one string suffers a short circuit, the second string can only backfeed its own I_sc (approx. 10A), which is well below the module's typical 15A to 20A series fuse rating.
• Three or More Parallel Strings (3P+): Individual string fuses or DC circuit breakers are typically required on each parallel branch. If a short circuit occurs in one module, multiple parallel strings can simultaneously backfeed into the faulted module, delivering combined currents that exceed the module's maximum series fuse rating and risking a severe electrical fire.

To ground these electrical principles in practical numbers, review the following worked examples based on a standard illustrative 200W benchmark module:
